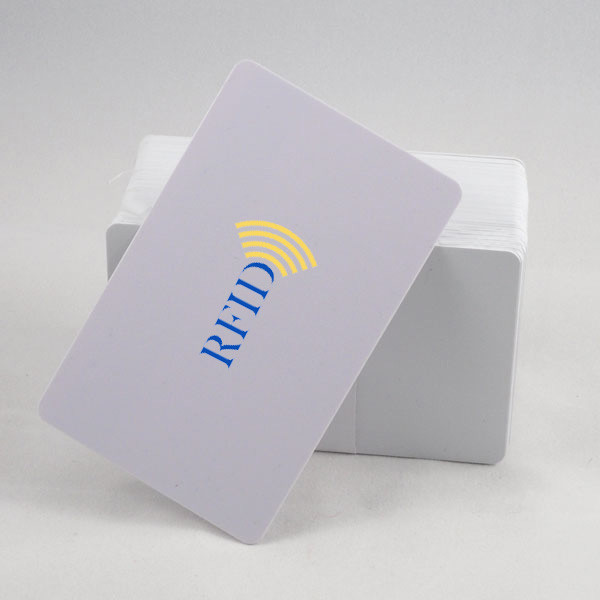

Magnetic RFID Plus® (S) 4K Read Plastic Loyalty Cards For Restaurants Membership
Description
RFID Smart Card Plus (S) 4K 7bytes Multi-block Read Card brings increased security to end-user solution providers together with a seamless upgrade of existing infrastructure and services with low cost procedures. This new RFID product is supported by card and reader manufacturers and solution developers, and is the only RFID Classic-compatible mainstream smart card IC featuring pre-issuance of cards prior to infrastructure changes.
Quick Details
- Material: High quality PVC
- Size: 85.5*54mm/as required
- Chips: RFID Plus (S) 4K 7bytes
- Storage Capacity: 4096bytes(1k)
- Frequency: 13.56MHZ
- Reading Distance: 2.5-10CM
- Responding Speed: 1-2MS
- Data Storage Period: 10 years
- Standard: ISO14443A
- Artwork: All artwork are available
Key features
* 2 or 4 Kbytes EEPROM
* Simple fixed memory structure compatible with RFID Classic (RFID Mini, RFID Classic®1k, RFID Classic®4k)
* Memory structure as in RFID Classic®4k (sectors, blocks)
* Unique serial number (4 or 7 byte)
* Multi-sector authentication
* Multi-block read * Anti-tear function for writing AES keys
* Keys can be stored as RFID Classic keys (2 x 48 bit per sector) or AES keys (2 x 128 bit per sector)
* Access conditions freely configurable
* Number of single write operations: 200, 000
| RFID Proximity Card |
| Name | Magnetic RFID Plus® (S) 4K Read Plastic Loyalty Cards For Restaurants Membership |
| Key Parameter | Chips | RFID Plus® (S) 4K |
| Frequency | 13.56MHZ |
| Reading Distance | 1-6cm |
| Dimension | Optional |
| Material | PVC |
| Certification | CE, FCC, RoHS |
| Housing Material | High quality PVC/PET/ABS |
| Physical Dimension | 85.5*54*0.76-0.84mm or OEM |
| Weight | NW6.5g+/-0.5g |
| Available Colors | CMYK/pantone colors |
| Available Printing Method | Offset/Silk screen/Silver or Gold Gilittering Effect/UV Printing |
| Other Available Options | Chip Encoding |
| Card Surface | Glossy/Matte finish |
| Printing Color | can be printed in 1 to full color on both sides, and also pantone colors or silk screen colors , glossy/matt laminated/UV film/sandy surface |
| Available crafts | glossy, matt, frosted laminated/finished |
| magnetic strip |
| signature panel and scratch panel |
| barcode in different types |
| Hot stamping gold/silver color |
| personalization: numbers or texts in thermal/inkjet /embossed/laser engraved/UV printing |
| Chip Available | High frequency 13.56mhz smart card | | | |
| Temperature | -10°C to +50°C |
| Operating humidity | ≤80% |
| Sample Availability | Free samples are available upon request |
RFID Smart Card Personalization Support:
Offset Printing with CMYK or Pantone colors/ Silk-screen printing with metallic, sliver effect/ Magnetic Stripe HiCo2750, HiCo4000 or LoCo300/ Serial Number or UID number printing/ Signature Panel/ Barcode printing/ Photo personalization/ Chip encoding/ Hologram/ UV printing / Laser Logo / Laser Serial Number
Application:
Public transportation/ even ticketing / Loyalty system / NFC application
company capacity
we always focused on providing to end users and distributors with the better products, faster delivery and more favorable price. We offer products as Inlay, Label, On-Metal Tag, Laundry Tag, Jewelry Tag, paper Ticket, Token, and Wristband etc. Also we can offer custom printed, roll, fanfold, sheet, digital and stock labels, inlay or tags. Our commitment is to meet your most demanding Tag needs.
